Acoustic Pulse Reflectometry Inspection System (APRIS)

Featuring patented Acoustic Pulse Reflectometry (APR) technology, APRIS is an advanced, yet easy-to-use tool that overcomes the limitations of many conventional inspection techniques. With its simple operation, interactive analysis and report generation, it offers enhanced user experience. Providing reliable inspection of even the most challenging tube sizes and configurations, APRIS increases inspection cycle efficiency and operational cost savings.

apris is the fastest tube inspection tool
any tube shape icon
Any Tube Material and Shape

Compatible with any tube material or shape. Non-ferrous, ferrous, graphite, plastic, U-bend, finned, twisted, spiral and more!

ultra fast inspection time icon
Ultra-Fast Tube Inspection

Speedy, non-invasive inspection. Takes only less than 10 seconds per tube!

final report generation icon
Final Report in Short Duration

Highly intuitive and customised report generation in a flash. Easy operation with minimal training.

Adaptable to tubes of any shape and material.

Adaptable for tubes of up to 4 inches (100mm) inner diameter, any shape or material.

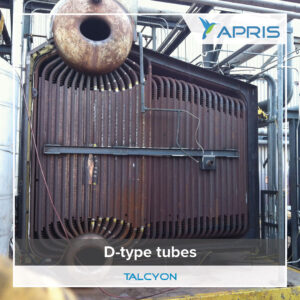

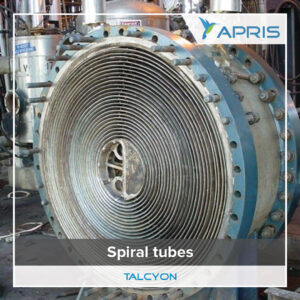

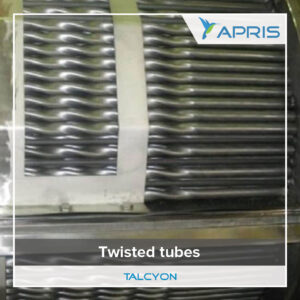

  • Any shape: D-type , Finned tubes , Multiple bend tubes, Twisted Tubes, Spiral Tubes, U-tubes
  • Any material: Ferrous metals, Non-ferrous metals, Graphite, Plastic
apris application on tube inspection

Ultra-fast, non-invasive inspection.

  • Less than 10 seconds per tube
  • If the tube is less than 6m, inspection takes only 5 seconds!
  • No need for inventory of consumable probes.

Less expertise required.

  • Easy operation with minimal training.
  • Computer-based data interpretation and signal analysis.
apris easy to use
apris logo

Full support from the Talcyon team.

  • We offer full support to our customers in terms of training, data analysis and report generation.
  • We service customers worldwide.
  • Service support available for all time zones.
Pre-requisites to carry out APR inspection
  • Tubes to be cleaned and dried (No water stagnation)

    Flipsides of APR:
  • Defects in the outer diameter can’t be detected
  • Inept to detect the defects under deposits/scales
  • Cracks under pressure (Closed Cracks) shall not be detected
International Standards
  • ASTM E2906/E2906M-18: Standard Practice for Acoustic Pulse Reflectometry Examination of Tube Bundles
  • ASME BPVC.V-2019: Article 18-Acoustic Pulse Reflectometry (APR) Examination
